Support for the Gevako RS5
Manual, YAML, and ESP32-C6 Firmware
Firmware releases
GitHub page including YAML files
GPIO pin overview ESP32-C6
| GPIO pin | Description |
| GPIO01 | Output 1 |
| GPIO02 | Output 2 |
| GPIO03 | Output 3 |
| GPIO04 | Output 4 |
| GPIO05 | Output 5 |
| GPIO08 | Green LED |
| GPIO09 | BOOT / Reboot (2 s) / Factory reset (10 s) |
| GPIO14 | Power source detection |

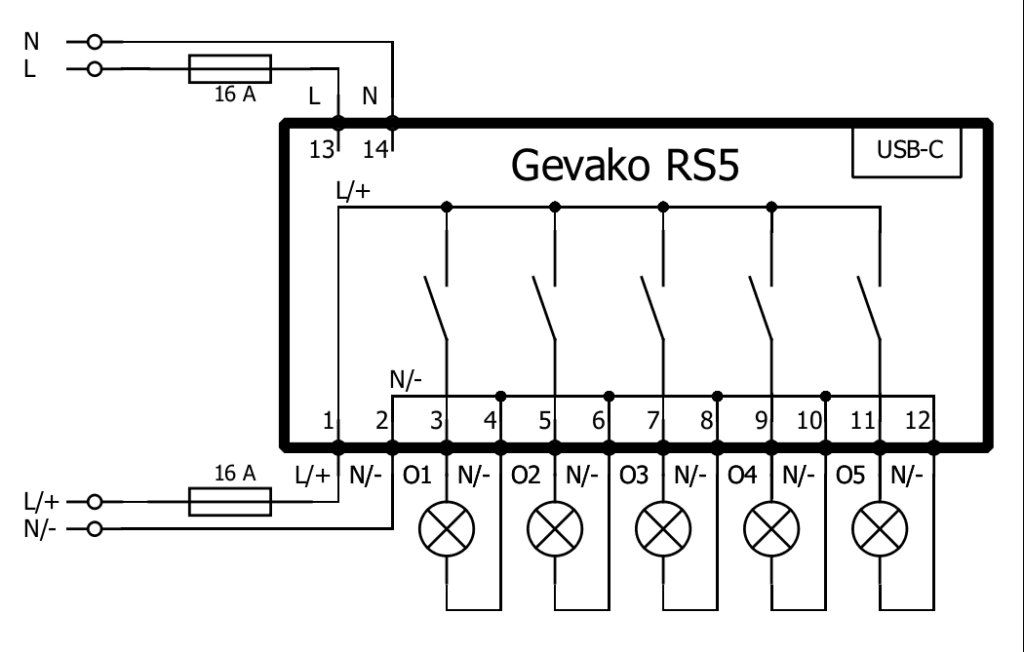

Example wiring diagram
